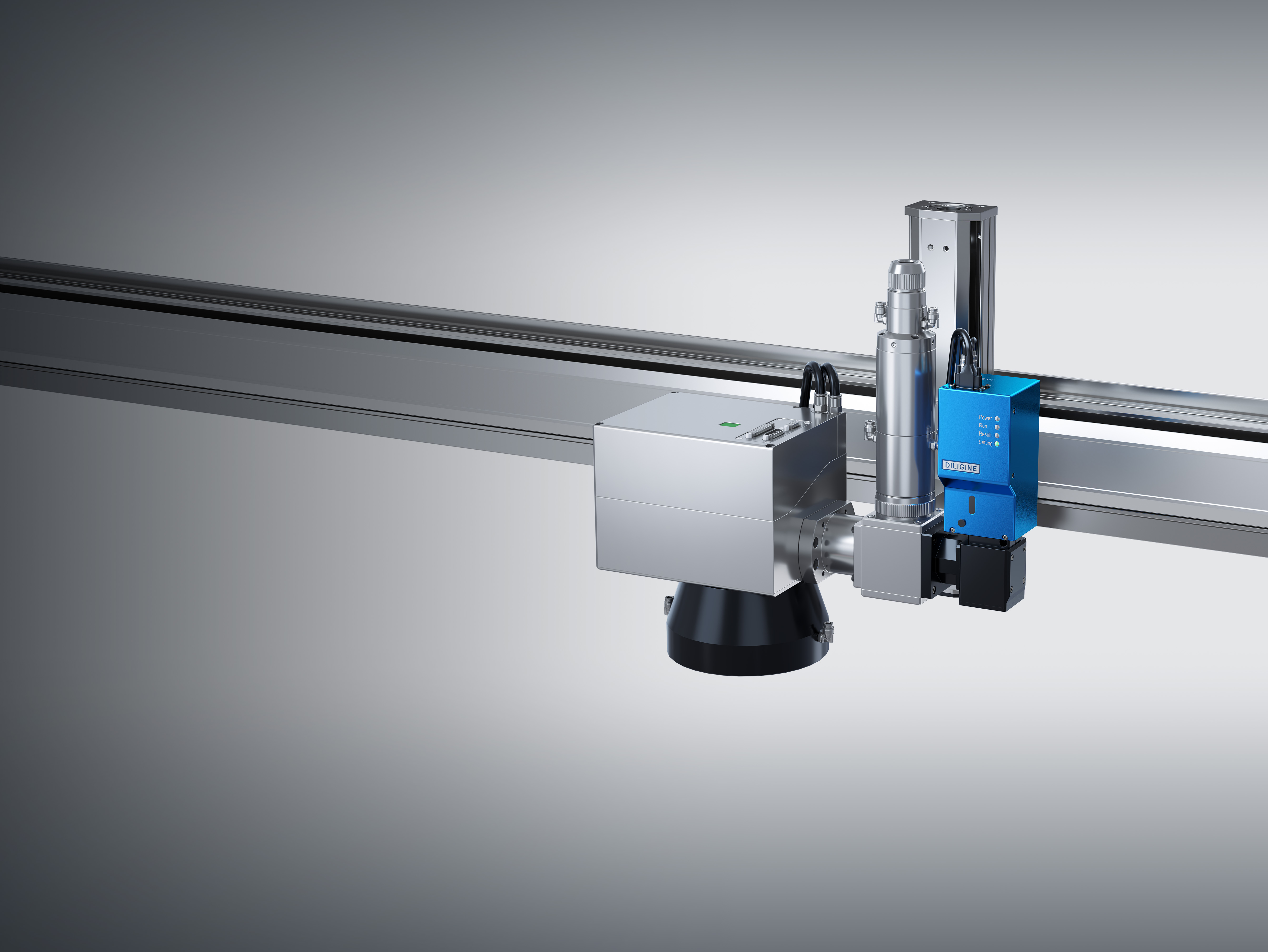

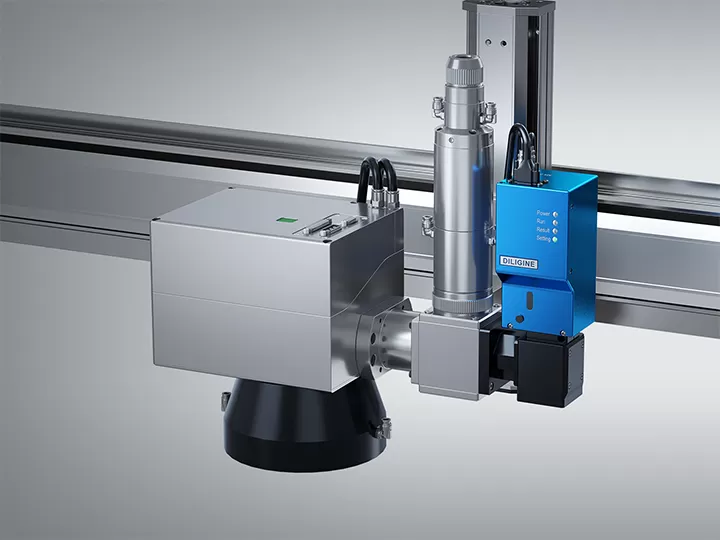

The Laser Focus Sensor (LFS) is a micron-level coaxial focus measurement instrument. It offers high measurement accuracy, a long measurement range, and real-time feedback, providing an effective solution for workstations with demanding requirements for welding focus stability. Furthermore, the LFS can be integrated with the Welding Defect Detection (WDD) to comprehensively ensure product quality and process stability.

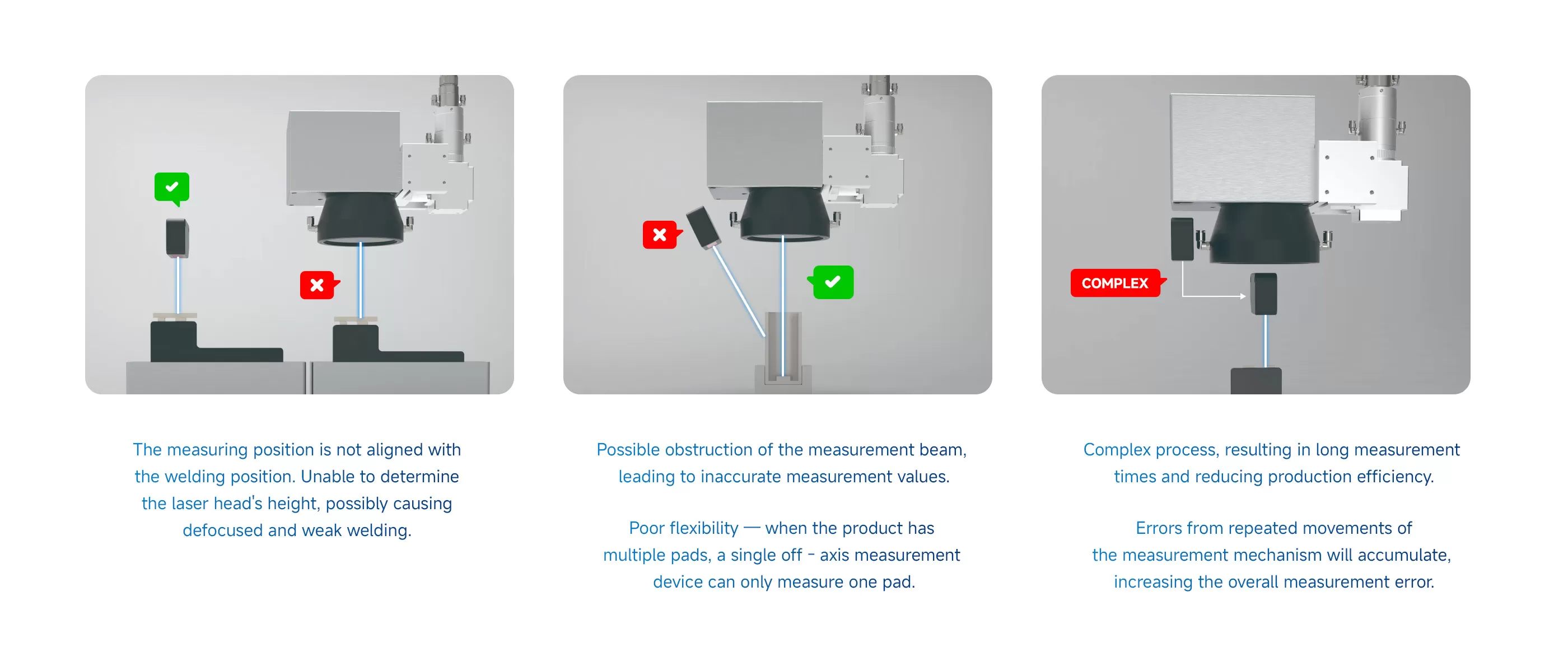

Traditional focus detection:
always slightly off the mark in precision.
Advantages of LFS
Coaxial Detection
Measuring point=Welding point.
No mechanical movement, no mechanical error.
Free of Obstruction
Avoid blocking of the optical path by the optical axis.
Detection bypass the copper nozzle without concern fixture obstruction.
No movement required
Minimise factors affecting the cycle
High processing efficiency
Real-time Feedback
Higher Accuracy
Coaxial measurement,
capture every focus deviation.
Tab/Connector Welding

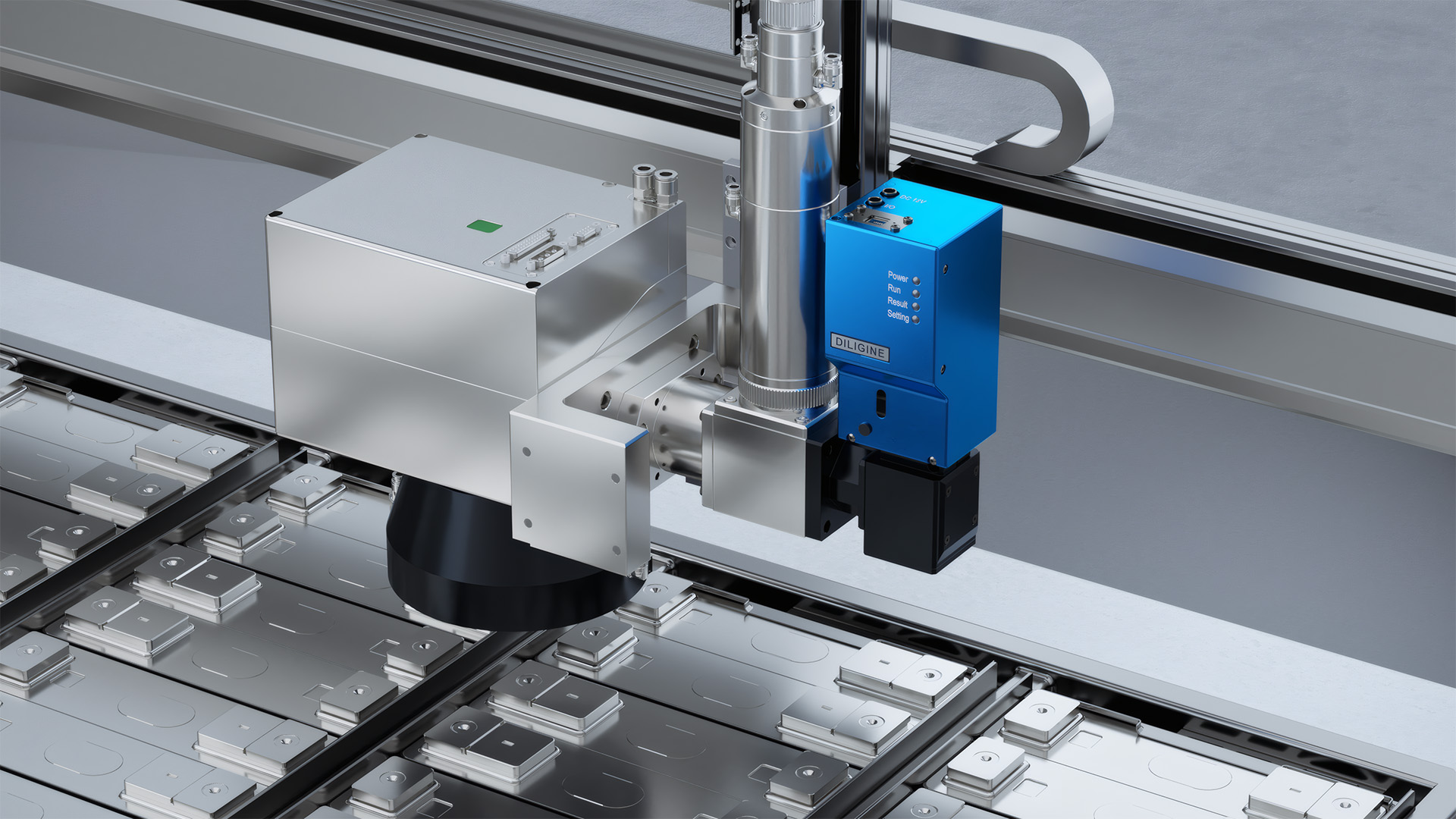

Busbar Welding

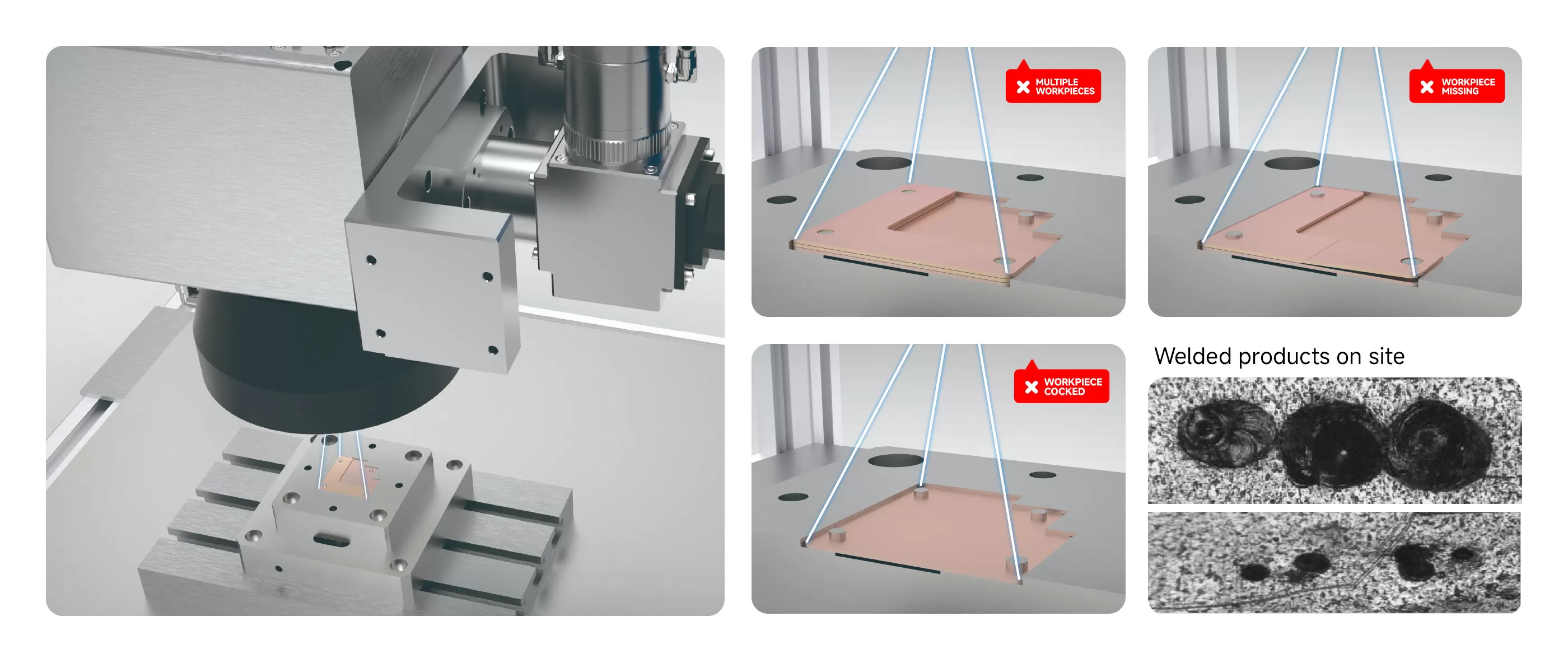

The system performs simultaneous, independent monitoring of multiple welding zones. It can identify virtually any condition that affects the defocus distance deviation, enabling stable and rapid inspection.

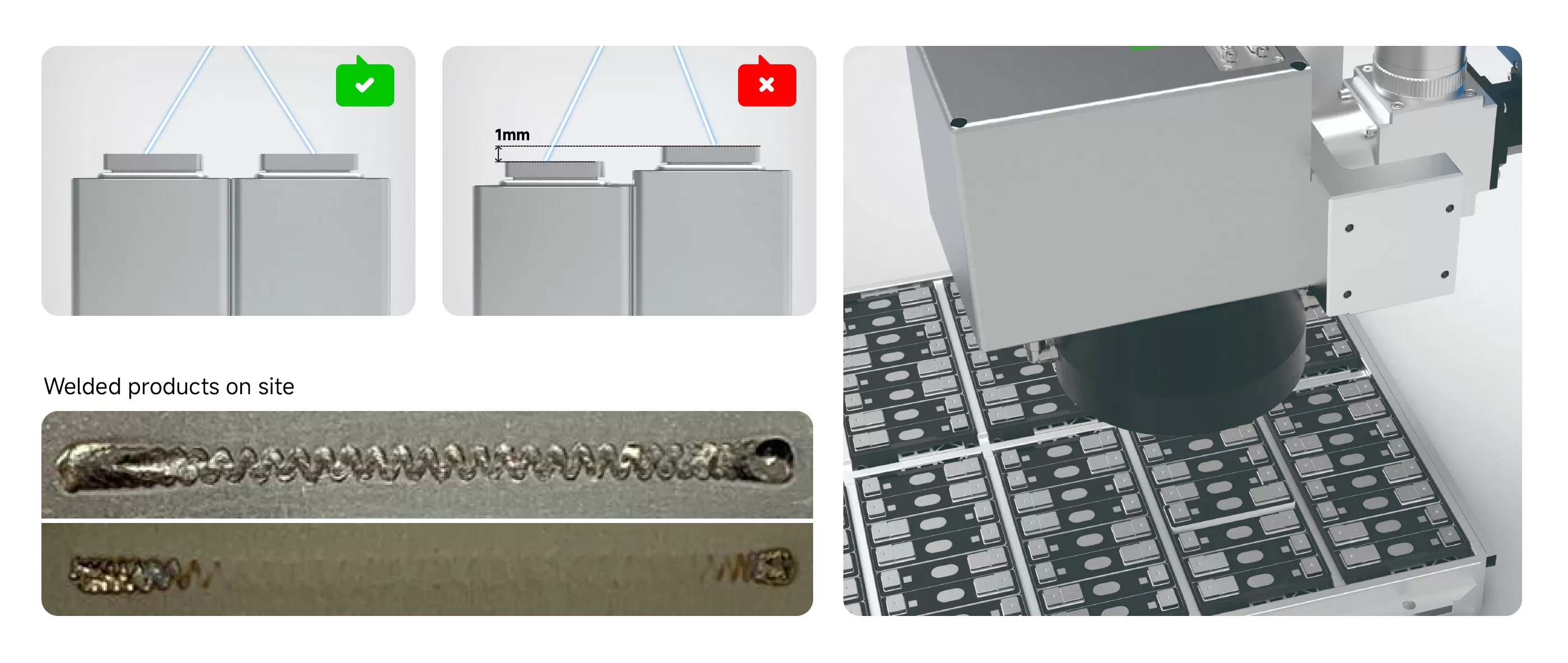

It measures the height positions of two specified points and detects the height difference between them. Simultaneously, it monitors the overall height variation of the target object, achieving stable and rapid inspection.

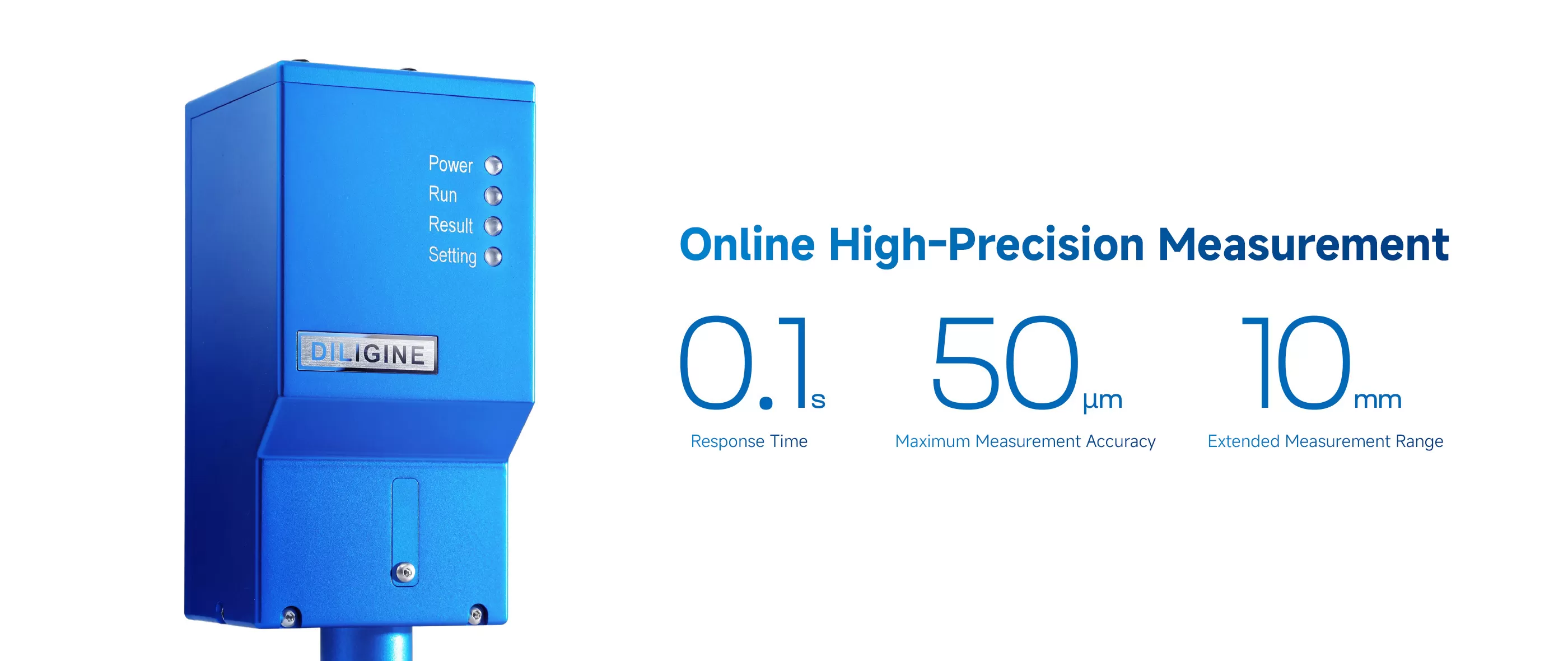

Parameter
|
Response Time
|
≤ 100ms (single cycle ~15ms)
|
|
Measurement Accuracy
|
Maximum 50μm※1
|
|
Measuring Distance
|
Depends on laser welding head length
|
|
Measuring Range
|
≥ 10mm※2
|
|
Light Source
|
940nm
|
|
Integration Options
|
SDK provided for customer intergration
|
|
Communication Protocols
|
TCP/IP/Analog/IO
|
|
Interface Type
|
I/O, 100M/Gigabit Ethernet, AO
|
|
Power Supply
|
DC±12V
|
|
Protection Level
|
IP50
|
|
Operating Temperature
|
+5℃ to +55℃
|
|
Relative Humidity
|
≤ 90%
|
Note：※1.Affected by workpiece surface roughness and laser head focal length
※2.Depends on focusing lens focal length
※3.15min preheating required before use
