Acquires optical coherence signals
for real-time measurement of laser welding penetration depth.

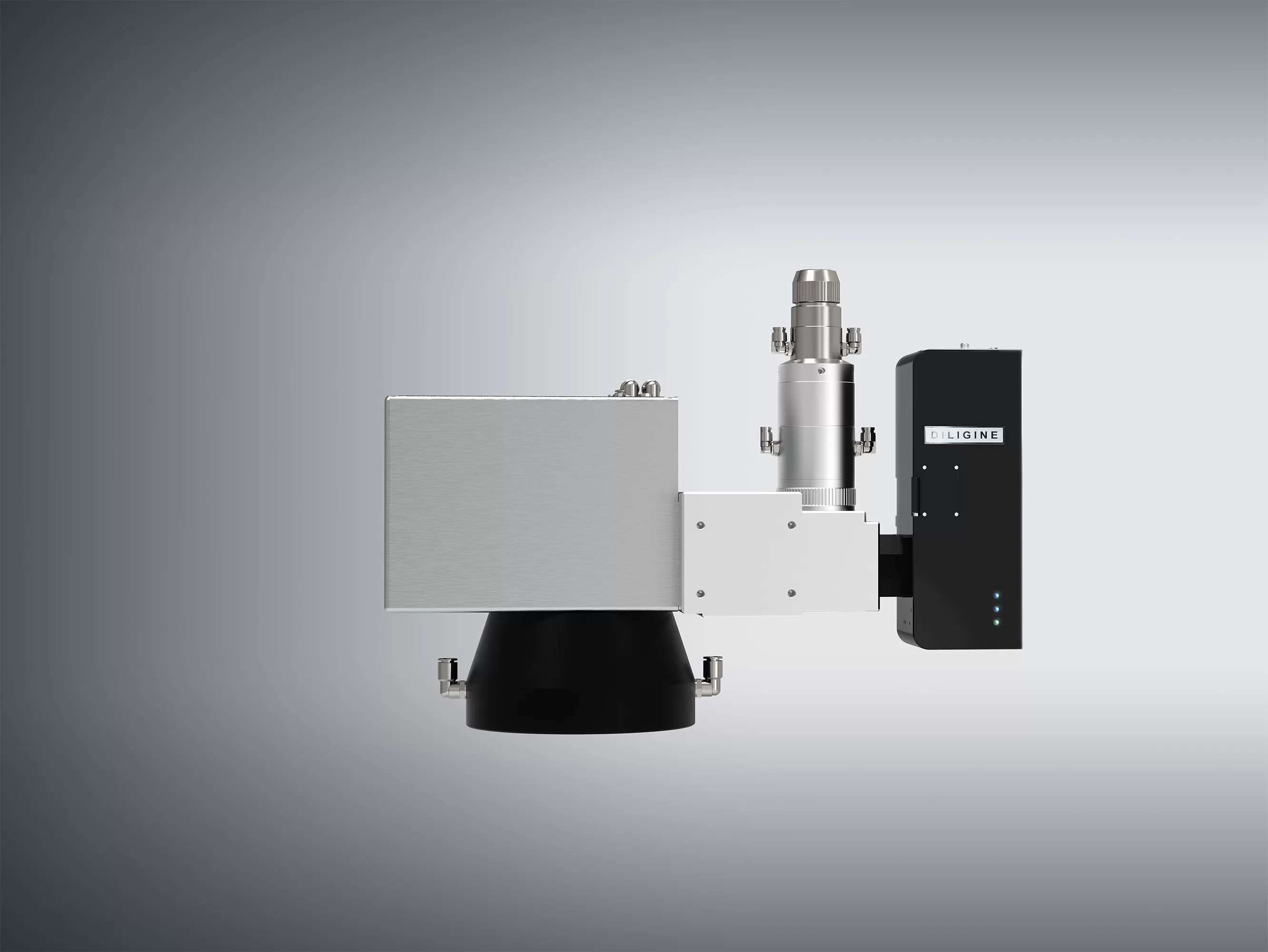

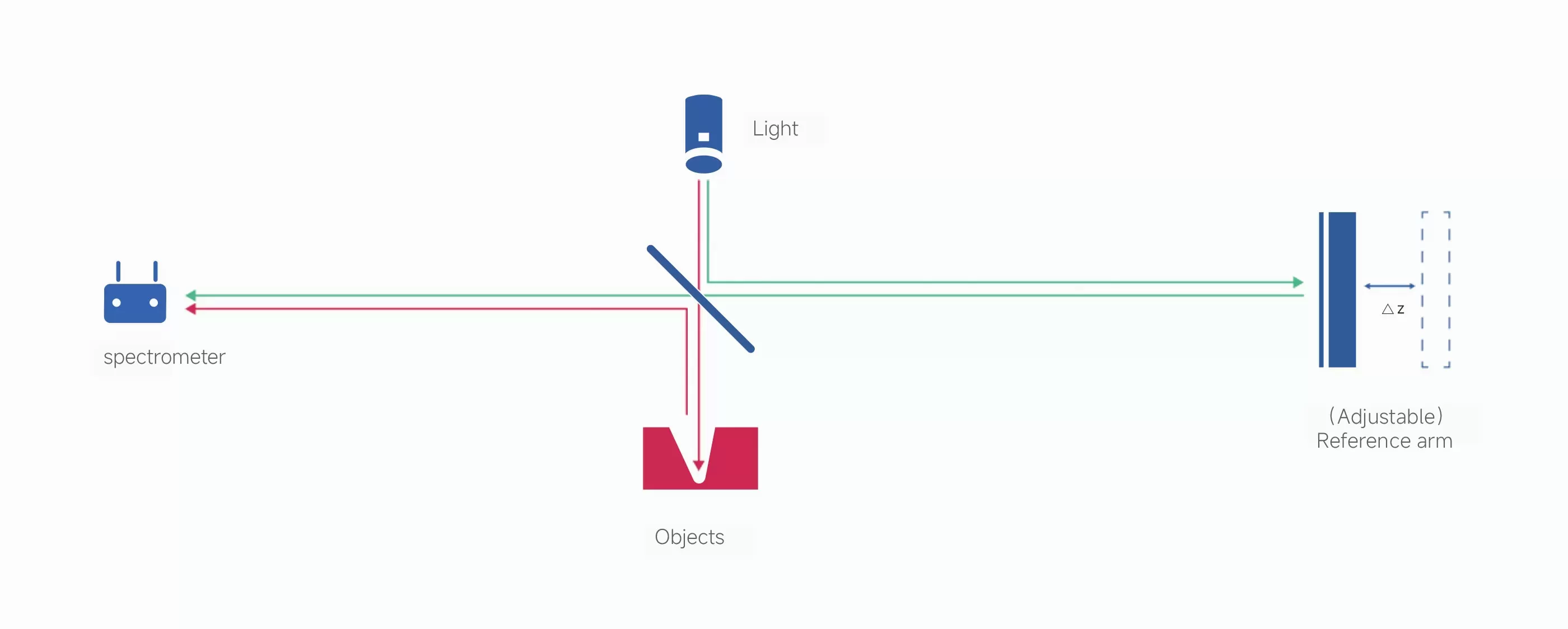

The Welding Depth Monitor (WDM) is a real-time inspection system for laser welding. It utilizes the distance-measuring capability of Optical Coherence Tomography (OCT) during the laser welding process. By comparing the measurement signal from the workpiece with a reference signal, it acquires molten pool depth information, which is then extracted and analyzed for depth determination.
Detect Weld Penetration Issues at the Earliest
Comprehensive Weld Quality Coverage
Pre-weld seam tracking
In-process penetration depth measurement
Post-weld bead geometry inspection
High operational stability
Unaffected by welding stray light
Suitable for different materials
Direct measurement of keyhole depth
High speed and high measurement accuracy
Non-destructive, real-time measurement
Instant feedback
Micron-level resolution

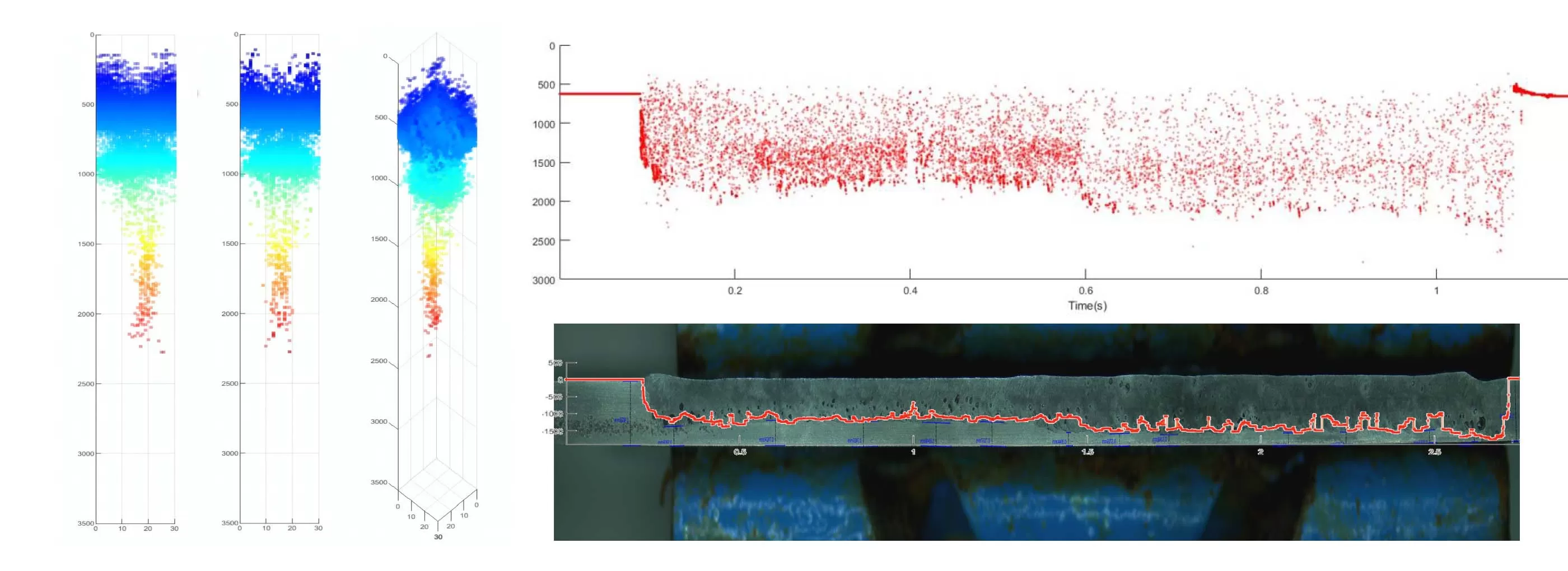

WDM application examples
Parameter
|
Wavelength
|
840nm
|
|
Axial Measurement Range
|
3mm/9mm（Other ranges are customizable）
|
|
Vertical Resolution
|
8μm/15μm |
|
Sampling Frequency
|
Max 250kHz
|
|
Spot Size*
|
50μm
|
|
Rated Power
|
500W
|
|
Dimensions（W x L x H）
|
130mm x 110mm x 303mm
|
|
Weight
|
4.2 kg (including cooling water)
|
|
Signal Acquisition Controller Dimensions（W x D x H）
|
482mm x 334mm x 176mm
|
|
Operating System
|
win10
|
|
Depth of Melt Scanner Compatibility
|
Compatible with fixed camera ports
|
|
External Communication
|
TCP/IP、I/O
|
|
Operating Temperature
|
+10℃ to +45℃ |
|
Relative Humidity
|
Max. 80%, non-condensing
|
|
Protection Level
|
IP50
|
|
Reference Arm Adjustment
|
Motorized, adjustable up to 100 mm，Two-stage fiber length adjustment mechanism. |
|
Penetration Depth Measurement Accuracy
|
≤ 10% of total depth (Absolute accuracy error requires evaluation based on process conditions). |
*Note: The center position of the field lens depends on the optical parameters of the laser welding head.
